DN50 fire angle valve

In water supply, drainage, and fire protection systems, the DN50 angle valve is an essential device for effectively controlling and regulating water flow. With a DN50 nominal size, the valve is suitable for a wide range of industrial and residential piping systems, ensuring stable operation as well as easy installation and maintenance.

Among the reputable brands on the market, the Shin Yi DN50 angle valve is highly regarded for its durable quality, excellent sealing performance, and compliance with international standards. It has become an integral component of indoor fire hose cabinets in high-rise buildings, factories, shopping centres, and civil construction projects. Let’s take a closer look at this Shin Yi fire-fighting angle valve series.

Key Features of the Shin Yi DN50 Angle Valve

The Shin Yi FHIA/FHBA fire-fighting angle valve is widely trusted in both residential and industrial projects thanks to its outstanding advantages. Its key features include:

Đặc điểm nổi bật của van góc Shin Yi — **Key Features of the Shin Yi Angle Valve**

Globe-shaped design with a fully red-painted body, smooth and glossy surface, making it highly visible and easy to identify within fire protection systems.

Round handwheel (wheel-type) in yellow colour, allowing easy manual operation for opening and closing.

One end features a **female threaded connection**, while the other end is equipped with a **quick coupling adaptor (fire hose coupling)** in silver colour, ensuring convenient connection to fire hoses.

One-piece cast valve body with a solid structure, featuring raised cast markings/labels of the manufacturer on the body.

The entire body is coated with **red anti-corrosion epoxy paint**, enhancing durability while providing a neat and aesthetic appearance.

Technical Specifications of the Shin Yi DN50 Fire-Fighting Angle Valve

The Shin Yi DN50 fire-fighting angle valve is available in two main models: FHIA (ductile iron body) and FHBA (brass body), designed to meet the standard fire protection system requirements in Vietnam. Below are the detailed technical specifications of the product:

Specification	Value / Description
Product model	FHIA (Ductile iron) / FHBA (Brass)
Nominal size	DN50
Working pressure	PN10, PN16
Design standards	TCVN 5739:1993, TCVN 6379:1998
Valve connection type	Female thread – Rc2 (DN50)
Hose connection type	Lug-type coupling (Adaptor compliant with TCVN 5739)
Valve body material	Ductile iron (ASTM A536) / Brass (ASTM B824)
Sealing material	NBR rubber, EPDM
Coating	Red epoxy resin powder, thickness 200–300 µm
Coating standards	JIS K 5551:2002 / TCVN 9014:2011
Operating temperature	-10°C to 80°C
Applicat

=> View and download the Shin Yi valve catalogue

មើលផលិតផល Shin Yi បន្ថែមទៀត៖

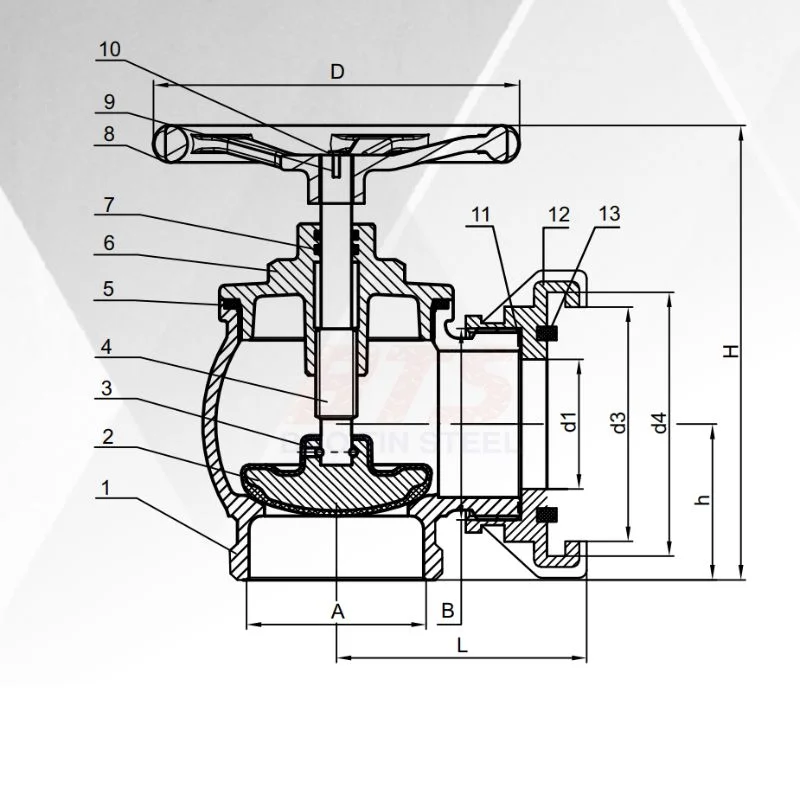

Construction and Materials of the Shin Yi DN50 Fire-Fighting Angle Valve

The Shin Yi fire-fighting angle valve is designed with a robust structure to ensure stable operation under high-pressure conditions. Each component is manufactured from high-quality materials, guaranteeing durability and long service life within fire protection systems.

No.	Part	Material	Material Grade / Standard
1	Valve body	Ductile iron or brass	ASTM A536 / ASTM B824
2	Valve disc	Ductile iron lined with EPDM rubber	ASTM A536 + EPDM
3	Pin	Brass	Commercial
4	Shaft	Stainless steel	ASTM A176 SUS410
5	O-ring	NBR rubber	–
6	Bonnet	Ductile iron	ASTM A536
7	Handwheel	Ductile iron	ASTM A536
8	Screw	Stainless steel	ASTM A182 F304
9	Washer	Stainless steel	Commercial
10	Hose adaptor	Aluminum	TCVN 5739:1993

Vật liệu chế tạo Van góc chữa cháy — Fire-fighting angle valve construction materials

Reference Prices for DN50 Angle Valves

Although all are DN50 in size, the price of fire-fighting angle valves varies by brand. Below is a REFERENCE PRICE TABLE for DN50 angle valves (excluding VAT). Prices may change depending on the time of purchase and order quantity.

For the most accurate quotation for DN50 fire-fighting angle valves, please contact Bao Tin Steel:

Contact Sales – Bao Tin
Request a Quote | Chat Zalo | Hotline

DN50 Angle Valve	Features	Price (VND/unit)
ARV angle valve	Cast iron, PN16, Malaysia	435,000 ₫
Tomoken angle valve	Ductile iron, epoxy-coated, Japan	280,000 ₫
Shin Yi DN50 angle valve (FHIX – with adaptor)	Ductile iron, threaded, TCVN standard, PN10/16	450,000 ₫

Practical Applications of Fire-Fighting Angle Valves in Fire Protection Systems

Fire-fighting angle valves are widely used in fixed fire protection systems, especially in buildings and facilities that require high safety standards and strict compliance with technical regulations.

Installation inside indoor fire hose cabinets

The valve is installed within wall-mounted fire hose cabinets, directly connected to the fire hose reel and nozzle, allowing staff or firefighters to quickly access and operate the system to extinguish fires on-site.

Applications in residential and industrial buildings

Installed on each floor or along emergency corridors in office buildings and high-rise apartments.
Integrated with internal fire protection cabinets in shopping centres, supermarkets, and hotels for rapid response to fire incidents.
Installed along main water mains in factories, warehouses, and industrial zones.
Used in schools, hospitals, train stations, and airports.

Compatibility with standard fire water supply systems
The https://tigersteel.vn/en/valve/Shin Yi angle valve easily connects to common water supply pipes in fire protection systems, suitable for both new constructions and retrofitting/upgrading existing fire-fighting systems.

Economic Benefits of Using DN50 Angle Valves

Van góc chữa cháy Shinyi — Investing in **DN50 fire-fighting angle valves** not only improves fire safety but also helps businesses optimise long-term costs:

**Optimise initial investment costs**

The valves are domestically manufactured, avoiding import taxes and offering more competitive prices compared to imported products.

Available in popular models (DN50, DN65), making it easy to select and install in line with existing systems.

**Save on maintenance and replacement costs**

The valve body is made of ductile iron or pure brass, offering corrosion resistance and strong durability for extended service life.

Designed for easy assembly and standard threaded connections, simplifying inspection and maintenance without requiring specialised tools or complex procedures.

**Compliant with acceptance standards – no additional costs**

The valves meet **TCVN 5739:1993** and **TCVN 6379:1998** standards, facilitating smooth fire protection system approval without the need for equipment replacement or project delays.

**Available stock and fast replacement – no impact on operations**

As a widely used product in the market, the valves are readily available from multiple distributors, reducing waiting time for replacements.

Standardised components ensure quick installation, which is especially important for large-scale projects.

Guidelines for Selecting and Installing DN50 Angle Valves

To ensure efficient operation and safety in fire protection systems, choosing the correct type of angle valve and proper installation are crucial. Below are specific guidelines to help you select and install DN50 angle valves correctly:

How to Choose the Appropriate Model

Criteria	Selection Recommendation
Supply pipe size	DN50: choose FHIA-0050 or FHBA-0050
Required material	Standard environment: select ductile iron body (FHIA) – Humid or corrosive environment: select brass body (FHBA)
System pressure	PN10 or PN16, depending on the existing water supply system
Aesthetic requirements	Red epoxy coating to match fire hose cabinet/box
Hose connection compatibility	Select a type with a lug adaptor compatible with the existing fire hose

Note: It is recommended to refer to the fire protection system drawings or consult a technician before purchasing to ensure full compatibility.

Technical Installation Guide for Fire-Fighting Angle Valves

Step 1: Preparation before installation

Check the valve for dents, cracks, or missing accessories.
Ensure the water supply pipe is clean and free of debris.
Verify that the threaded connection is compatible with the supply pipe.

Step 2: Installation procedure

Screw the angle valve onto the pipe in the correct threading direction, using PTFE tape to ensure a tight seal.
Tighten by hand or with appropriate tools, avoiding over-tightening to prevent thread damage.
Attach the fire hose reel to the adaptor lug, ensuring proper alignment and a secure fit.

Step 3: Inspection and commissioning

Turn on the water to check for leaks at joints and the valve disc.
Operate the handwheel to ensure smooth valve operation.
Close the fire hose cabinet and label it clearly.

Technical Tips:

Do not install the valve at a low position prone to flooding.
It is recommended to install the valve at approximately 1.0–1.2 meters above the ground for easy operation.
Conduct regular inspections and maintenance every 6–12 months.

Conclusion

The DN50 fire-fighting angle valve is an optimal choice for all indoor fire protection systems due to its modern design, superior durability, and stable operation. Made of ductile iron or brass with anti-corrosion epoxy coating, this valve ensures effective fire-fighting performance and complies with TCVN standards for system approval.

Additionally, with its reasonable price and easy maintenance, the angle valve is suitable for both new construction and renovation projects, from residential to industrial applications.

If you are looking to purchase DN50 angle valves, especially Shin Yi fire-fighting angle valves, check out Bao Tin Steel. We supply a full range of steel pipes, pipe accessories, valves, hoses, and fire protection materials. We are confident in providing all the materials you need for your project at the best prices.
