Weight of H-beam, symbol, and quotation of H-section steel

H-beam or H-section steel, or H-steel, is a steel line many customers want to buy. With high bearing capacity and good durability, it makes beams, columns, trusses, machinery and equipment frames, bridges, railways, warehouses, barns, etc. But are you sure you have fully understood the H-beam or H-section steel weight? The article below will bring you interesting information!

What is H-beam? What is the symbol for H-section steel?

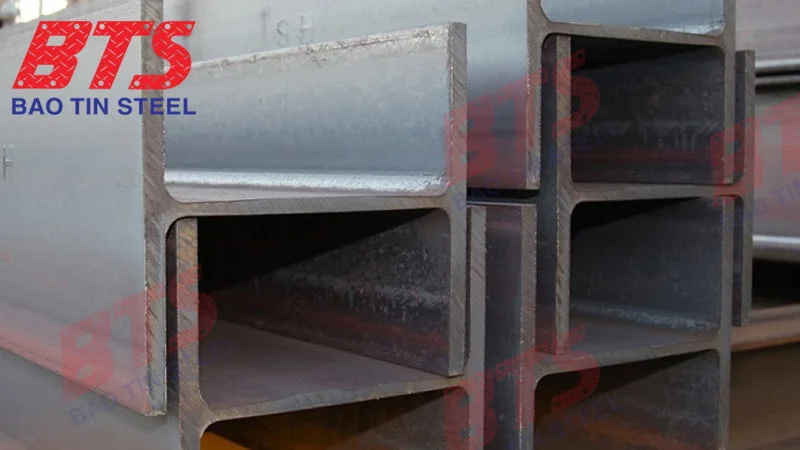

H-beam is a type of shaped steel manufactured from low-carbon structural steel or high-strength steel. This steel has an H shape with equal height and width, creating high bearing capacity and good durability.

The symbols of H-beam include three standard symbols: HSGS, HSWS, and HSBS, specifically:

• HSGS: This H-beam symbol is used in common structures: H Sections for General Structure.
• HSWS: This symbol is used in welded structures: H Sections for Welded Structure.
• HSBS: This symbol refers to the type of H-beam used in construction structures: H Sections for Building Structure.

Outstanding advantages of H-beam

This kind of steel is trusted and chosen so much. Below are the plus points that help H-beam become widely sought after:

• High bearing capacity: The H tamping bar has a balanced structure with equal height and width. This helps H-shaped steel have a high bearing capacity, withstand large loads, and be very safe.
• Good durability: H-beam is made from high-quality steel with good durability. H-section steel can withstand environmental impacts such as weather, chemicals,…
• High aesthetics: It has an H beam, creating a modern and luxurious beauty for each project.

Technical standards of H-beam

H-beam is very diverse in size. Some of the most sought-after sizes include H-Bam H150, H200, H300, H400, H350,… Below are the popular steel grades of this steel line:

Steel grade	Origin	Standard
CT0, CT3 …	Russia	GOST 380-88
SS400 …	Japan	JIS G3101, SB410, 3010.
SS400, Q235B….	China	JIS G3101, SB410, 3010.
A36,…	America	ASTM A36
S355, S275	Europe	S275JR, S275J0, S275J2 S355JR

Table to look up specifications and weight of H-beam

Depending on each standard, the H-beam will have differences in weight. Therefore, below will only be a reference table according to Vietnamese standards for you to have some idea about this type of steel.

* Note:

• Abdominal height: H
• Wing width: B
• Abdominal thickness: t1
• Wing thickness: t2

H-beam price quote

For you to be better prepared when purchasing this steel for your project, we provide an H-beam price quote for your reference. Note: This is only a reference price list because this price will change continuously depending on the market situation. Even between steel brands, prices vary slightly.

Therefore, to be more certain, call the hotline at (+84) 0932 059 176 or (+855) 0968696789 to receive the fastest and most accurate quote!

Weight of H-beam, symbol, and quotation of H-section steel

Name & Specification	Length (m)	Weight (Kg)	Price includes VAT (Đ/Kg)	Total price includes VAT (Đ/piece)
H 100 x 100 x 6 x 8	12	206,4	22.500	4.644.000
H 125 x 125 x 6.5 x 9	12	285,6	22.500	6.426.000
H 150 x 150 x 7 x 10	12	378	22.500	8.505.000
H 148 x 100 x 6 x 9	12	254,4	22.500	5.724.000
H 175 x 175 x 7.5 x 11	12	484,8	22.500	10.908.000
H 194 x 150 x 6 x 9	12	367,2	22.500	8.262.000
H 244 x 175 x 7 x 11	12	529,2	22.500	11.907.000
H 200 x 200 x 8 x 12	12	598,8	22.500	13.473.000
H 250 x 250 x 9 x 14	12	868,8	22.500	19.548.000
H 294 x 200 x 8 x 12	12	681,6	22.500	15.336.000
H 300 x 300 x 10 x 15	12	1128	22.500	25.380.000
H 350 x 350 x 12 x 19	12	1644	22.500	36.990.000
H 400 x 400 x 13 x 21	12	2064	22.500	46.440.000
H 390 x 300 x 10 x 16	12	1284	22.500	28.890.000
H 482 x 300 x 11 x 15	12	1368	22.500	30.780.000
H 488 x 300 x 11 x 18	12	1536	22.500	34.560.000
H 582 x 300 x 12 x 17	12	1644	22.500	36.990.000
H 588 x 300 x 12 x 20	12	1812	22.500	40.770.000
H 440 x 300 x 11 x 20	12	1488	22.500	33.480.000

Distinguish between H-beam and I-beam.

Both are shaped like steel and have nearly the same structure; many people confuse the I beam and the H beam as the same thing. However, they still have their characteristics. Below are some of the differences between I-beam and H-beam.



• In terms of shape: the I-beam has a cross-section similar to the capital letter I, with the belly and wings having equal or nearly equal height. This steel has a cross-section similar to the letter H, with the belly and wings having different heights, usually, the wings are higher than the belly.
• Regarding weight, the weight of an H-beam is greater than that of an I-beam of the same type. This is because the I-beam has a smaller cross-section.
• In terms of variety, the H bar has a wider variety of sizes than the I beam. This is because it can be made to any size or height. While I-beam steel can only be manufactured according to standard dimensions,.
• Regarding bearing capacity, the H-beam has a higher bearing capacity than I steel of the same type. This is because H steel has a larger cross-section than I steel. It helps distribute the force more evenly across the entire section.

Where can I buy quality H-beam?

Currently, there are many agents and stores selling H-beam. However, not all addresses provide quality products. That’s why you need to learn about Bao Tin Steel right away.

Bao Tin Steel Company Limited is a distributor of iron, steel, and industrial accessories with more than 10 years of experience. We are confident in bringing customers and project owners quality products with clear origins.

The company’s main products include black steel pipes, seamless steel pipes, galvanized steel pipes, large steel pipes, square steel tubes, and steel H-I – U – V-angle steel. In addition, there are supplies and pipe accessories. They are all imported from famous brands such as Hoa Phat, Hoa Sen, SeAh, Viet Duc,… Therefore, customers can rest assured about the quality of the iron and steel here.

In addition, the steel pipe warehouse of Bao Tin Steel is now present in many provinces and cities. Customers can come directly to the warehouse to view goods and make a deposit. We also support shipping goods to customers’ construction sites (if customers need them).

In addition, the professional and enthusiastic attitude of the sales staff at Bao Tin Steel will also help customers feel secure and satisfied. Any problems that arise during the purchasing process will be resolved promptly and reasonably.

Bao Tin Steel hopes that you already know the weight of the H-beam. At the same time, if you want to get quality products at competitive prices, don’t hesitate to call us immediately at (+84) 0932 059 176 or (+855) 0968696789!
