ភាសាខ្មែរI-beam is also known as I-beam. This is a type of steel beam made by milling or rolling an I-beam. That is, it is made from a single block of steel (iPhone style with a shell of That’s monolithic metal,).

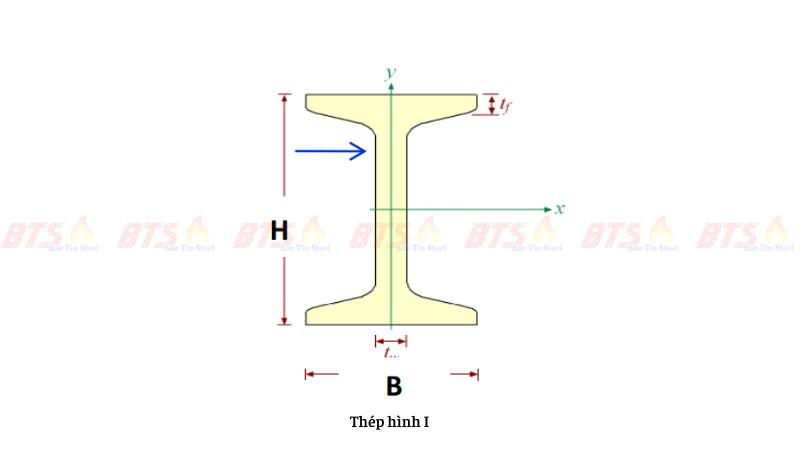

How is the I-beam? We invite you to watch more!
I-beam steel specification
At Tiger Steel, I-beams are supplied with the following specifications:
| I-BEAM STEEL SPECIFICATION | ||||||
| PRODUCT’S NAME | Commodity specification (mm) | Length ( M/ piece ) |
Weight (KG/M) |
|||
| Edge size ( XxYmm ) |
Abdominal thickness T1 | Wing Thickness T2 | ||||
| I-beam 100 | I100x50 | 3.2 | 6m | 7 | ||
| I-beam 100 | I100x55 | 4.5 | 6.5 | 6m | 9.46 | |
| I-beam 120 | I120x64 | 4.8 | 6.5 | 6m | 11.5 | |
| I-beam 148 | I148x100 | 6 | 9 | 6m – 12m | 21.1 | |
| I-beam 150 | I150x75 | 5 | 7 | 6m – 12m | 14 | |
| I-beam 194 | I194x150 | 6 | 9 | 6m – 12m | 30.6 | |
| I-beam 198 | I198x99 | 4.5 | 7 | 6m – 12m | 18.2 | |
| I-beam 200 | I200x100 | 5.5 | 8 | 6m – 12m | 21.3 | |
| I-beam 244 | I244x175 | 7 | 11 | 6m – 12m | 44.1 | |
| I-beam 248 | I248x 124 | 5 | 8 | 6m – 12m | 25.7 | |
| I-beam 250 | I250x125 | 6 | 9 | 6m – 12m | 29.6 | |
| I-beam 250 | I250x175 | 7 | 11 | 6m – 12m | 44.1 | |
| I-beam 294 | I294x200 | 8 | 12 | 6m – 12m | 56.8 | |
| I-beam 298 | I298x149 | 5.5 | 8 | 6m – 12m | 32 | |
| I-beam 300 | I300x150 | 6.5 | 9 | 6m – 12m | 36.7 | |
| I-beam 340 | I340x250 | 9 | 14 | 6m – 12m | 79.7 | |
| I-beam 346 | I346x174 | 6 | 9 | 6m – 12m | 41.4 | |
| I-beam 350 | I350x175 | 7 | 11 | 6m – 12m | 49.6 | |
| I-beam 390 | I390x300 | 10 | 16 | 6m – 12m | 107 | |
| I-beam 396 | I396x199 | 7 | 11 | 6m – 12m | 56.6 | |
| I-beam 400 | I400x200 | 8 | 13 | 6m – 12m | 66 | |
| I-beam 440 | I440x300 | 11 | 18 | 6m – 12m | 124 | |
| I-beam 446 | I446x199 | 8 | 12 | 6m – 12m | 66.2 | |
| I-beam 450 | I450x200 | 9 | 14 | 6m – 12m | 76 | |
| I-beam 482 | I482x300 | 11 | 15 | 6m – 12m | 114 | |
| I-beam 488 | I488x300 | 11 | 18 | 6m – 12m | 128 | |
| I-beam 496 | I496x199 | 9 | 14 | 6m – 12m | 79.5 | |
| I-beam 500 | I500x200 | 10 | 16 | 6m – 12m | 89.6 | |
| I-beam 596 | I596x199 | 10 | 15 | 6m – 12m | 94.6 | |
| I-beam 582 | I582x300 | 12 | 17 | 6m – 12m | 137 | |
| I-beam 588 | I588x300 | 12 | 20 | 6m – 12m | 151 | |
| I-beam 594 | I594x302 | 14 | 23 | 6m – 12m | 175 | |
| I-beam 600 | I600x200 | 11 | 17 | 6m – 12m | 106 | |
| I-beam 692 | I692x300 | 13 | 20 | 6m – 12m | 166 | |
| I-beam 700 | I700x300 | 13 | 24 | 6m – 12m | 185 | |
| I-beam 792 | I792x300 | 14 | 22 | 6m – 12m | 191 | |
| I-beam 800 | I800x300 | 14 | 26 | 6m – 12m | 210 | |
| I-beam 900 | I900x300 | 16 | 18 | 6m – 12m | 240 | |
If you do not know how to read I-beam steel parameters, you can take a look at how to read Figure steel parameters. The way to read it is similar.
Features and applications of I-beams steel
Review a bit so that you can understand the basic characteristics of I-beams.
- I-beam is a monolithic steel bar
- The flanges of the I-beam are tapered with an inclination of 1:10 for better load-carrying capacity.
- The cross-section of the I-beam is usually deeper than the width, so it is resistant to local warping.
- I-beams are used for spans from 10 to 30.5 meters.
Remember these 4 outstanding features, you don’t need to worry about being confused between I-beams and
H-beams anymore.
With such characteristics, the application of I-beam steel is quite specialized. Specifically, it is only applied in a few areas such as:
- Making support frames and columns for elevators and trailers.
- Used as tram rail.
- Fabrication and installation of hoists
- Construction of steel structures and bridges.
You can see some actual pictures below!
If you have any questions, you need to be answered. Please contact Tiger Steel at 0932 059 176 – 0932 059 176
