ភាសាខ្មែរStainless steel safety valves are indispensable components in systems involving steam, chemicals, seawater, or food processing. In such environments, conventional brass or cast iron valves are prone to corrosion, rust, or failure after a short period of operation. For instance, in a wastewater treatment plant or a purified water production line, using low-quality valves can lead to pressure leaks, posing safety risks and potentially disrupting the entire system.
As a result, more and more businesses are turning to safety valves made from 304 or 316 stainless steel. These valves not only offer excellent durability, heat resistance, and pressure tolerance, but also ensure hygiene and long-lasting performance.
If you’re looking for a reliable pressure relief solution with superior corrosion resistance, take a look at the LVP stainless steel safety valve below!

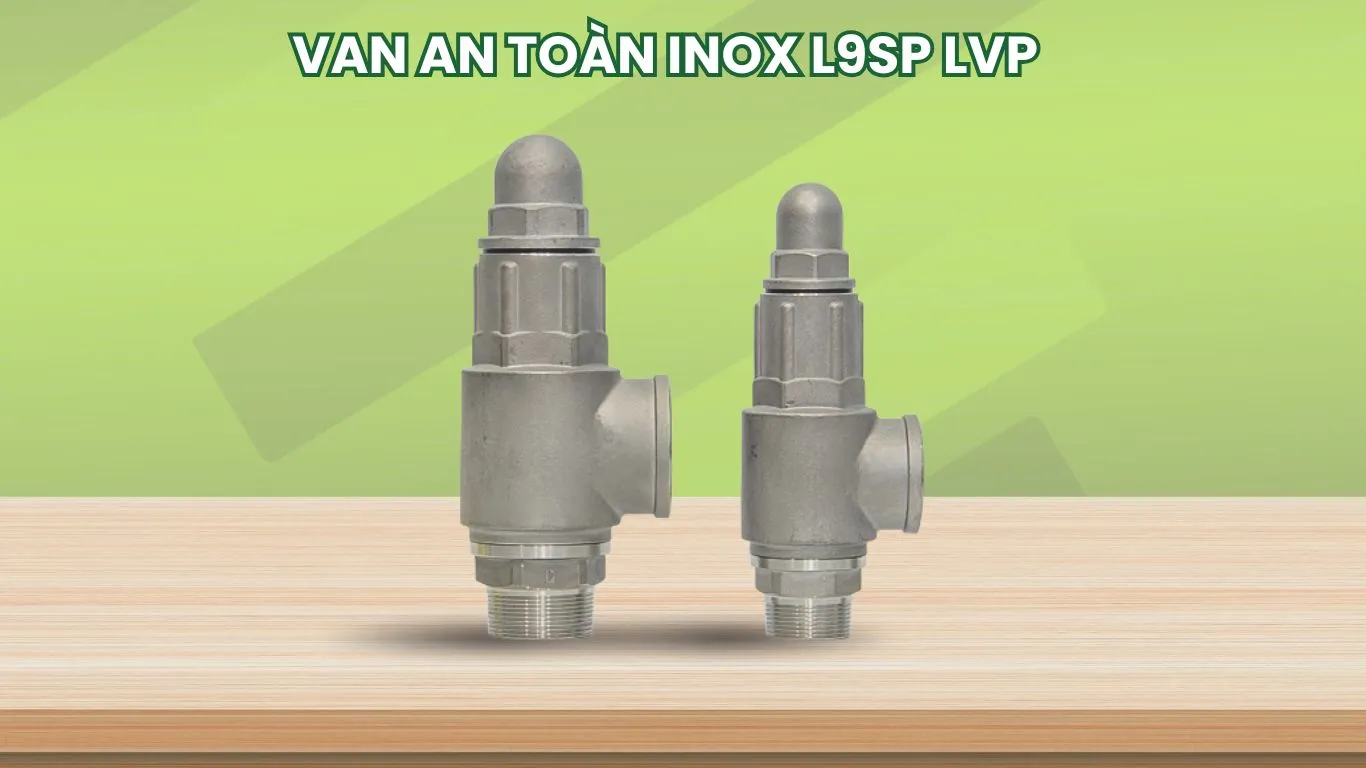

Features of the LVP L9SP stainless steel safety valves
- The valve features a vertical, cylindrical body with a compact and symmetrical design.
- It is made of 316/304 stainless steel.
- The surface has a matte silver-grey finish with a subtle shine.
- The body is precision-cast in one solid piece, with a smooth, sandblasted finish that resists dirt and buildup.
- It is equipped with a polished stainless steel lever and a sharp, well-defined male threaded connection.

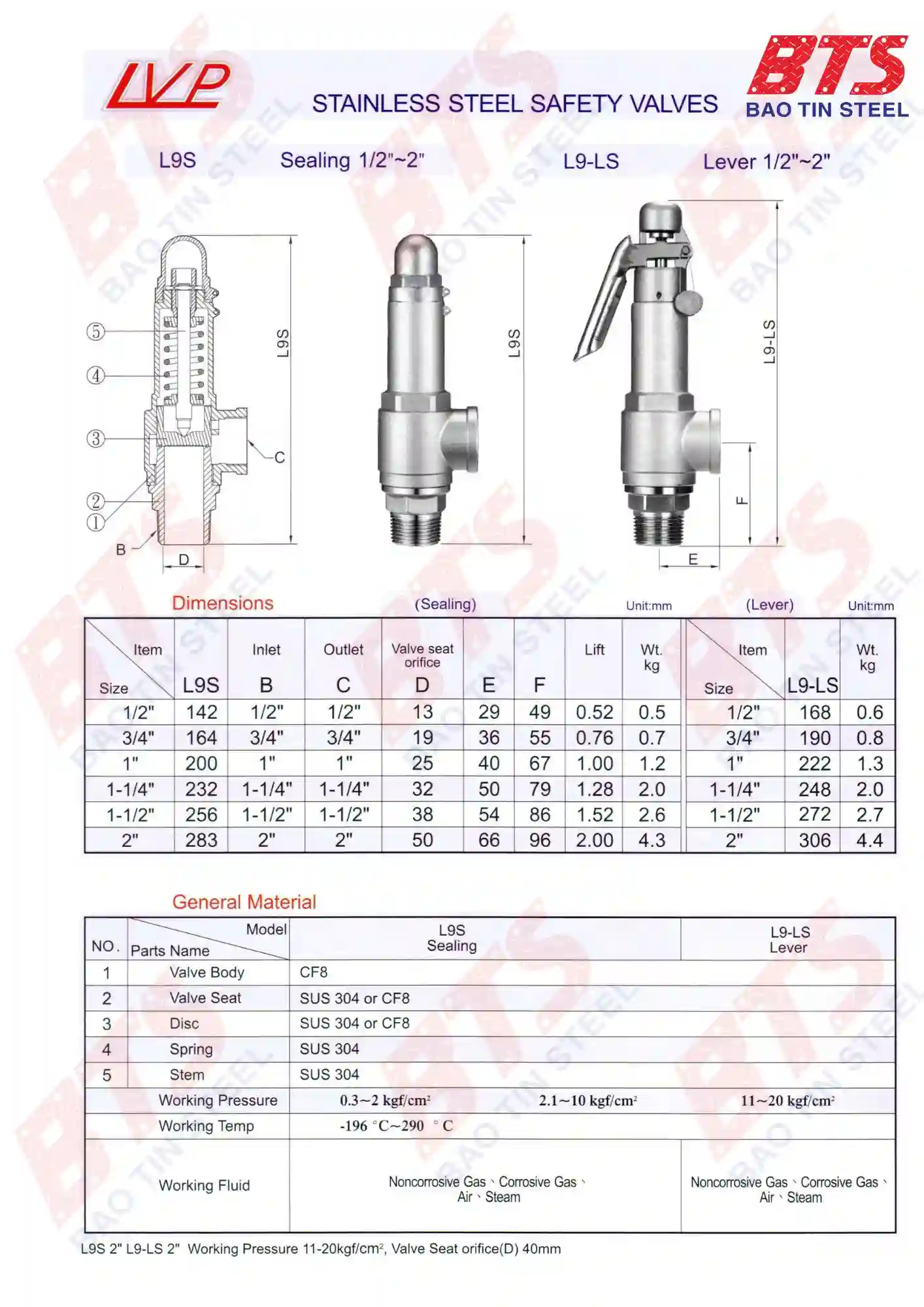

Technical Specifications – LVP Stainless Steel Safety Valve (Model: L9SP)
The LVP stainless steel safety valve is an industrial-grade component commonly used in systems that require protection against overpressure. Below are the detailed specifications:
- Brand: LVP
- Model: L9SP
- Body Material: Stainless Steel
- Valve Type: Non-lever (automatic release, without hand lever)
- Size Range: DN15 – DN50 (½″ – 2″)
- Connection Type: Threaded (Male Thread)
- Country of Origin: Taiwan
- Working Pressure Range: 0.3 ~ 2 kgf/cm² up to 11 ~ 20 kgf/cm²
- Operating Temperature Range: -196°C to 290°C
- Applicable Media: Gas, compressed air, steam
See more safety valve products here: Hisec A3-L brass safety valve with handle
Reference Price List – LVP Stainless Steel Safety Valves
📌 Note: This is a REFERENCE PRICE LIST ONLY. Prices are exclusive of VAT and may vary depending on order quantity and import time.
| Model | Size | Material | Working Pressure | Connection Type | Reference Price (VND/unit) |
|---|---|---|---|---|---|
| L9SP-15 | DN15 (½″) | Inox 304/316 | 10 bar | Male thread | 480,000 – 620,000 |
| L9SP-20 | DN20 (¾″) | Inox 304/316 | 10 bar | Male thread | 580,000 – 720,000 |
| L9SP-25 | DN25 (1″) | Inox 304/316 | 10–16 bar | Male thread | 750,000 – 900,000 |
| L9SP-32 | DN32 (1¼″) | Inox 316 | 16 bar | Male thread | 950,000 – 1,150,000 |
| L9SP-40 | DN40 (1½″) | Inox 316 | 16 bar | Male thread | 1,300,000 – 1,500,000 |
Advantages & Applications of LVP Stainless Steel Safety Valves
Advantages
- Made from 304 or 316 stainless steel, offering excellent resistance to rust and oxidation. Highly durable in environments involving water, steam, or mild acids.
- Fast and accurate pressure relief, ensuring smooth system operation without sticking or failure. Helps maintain continuous and safe performance.
- Compatible with a wide range of media, including water, gas, steam, and mild chemicals.
- Available in both threaded and flanged connections, making it easy to install across different types of systems.
Practical Applications
- Installed in boilers, water heaters, and high-pressure water supply systems at factories or industrial zones.
- Used in food, pharmaceutical, and beverage production systems.
- Applied in chemical processing, wastewater treatment, and oil & gas systems
Conclusion
In continuous-operation systems requiring high reliability, investing in the right pressure relief valve is a key factor to avoid risks and optimise performance. Stainless steel safety valves not only protect equipment but also help reduce maintenance costs, production downtime, and unexpected technical failures.
If you are looking for a durable and versatile device suitable for both clean water and corrosive chemical environments, stainless steel valves are the solution worth prioritising. Bao Tin Steel currently offers a wide range of genuine stainless steel safety valve models from brands such as LVP, HISEC, and Kosaplus, all accompanied by full certification—and at highly competitive prices.
Moreover, with over 13 years of experience, Bao Tin Steel is well-known as an importer and distributor of steel pipes, pipe fittings, and firefighting equipment. Contact us today for direct support! – Hotline: 0932 059 176.
