Advantages of 316 Stainless Steel Ball Valves: Reasons to Choose 316 Stainless Steel Ball Valves

If you’re looking for a valve that is both durable and capable of withstanding highly corrosive environments like seawater or chemicals, then 316 stainless steel ball valves are a choice worth considering. However, many people still wonder: Are 316 stainless steel ball valves good? Why should you choose this type of valve over other common types?

In today’s article, Bao Tin Steel will take you through a detailed exploration of 316 stainless steel material, along with the prominent advantages of this valve type and tips on how to choose the right one to ensure long-term efficiency.

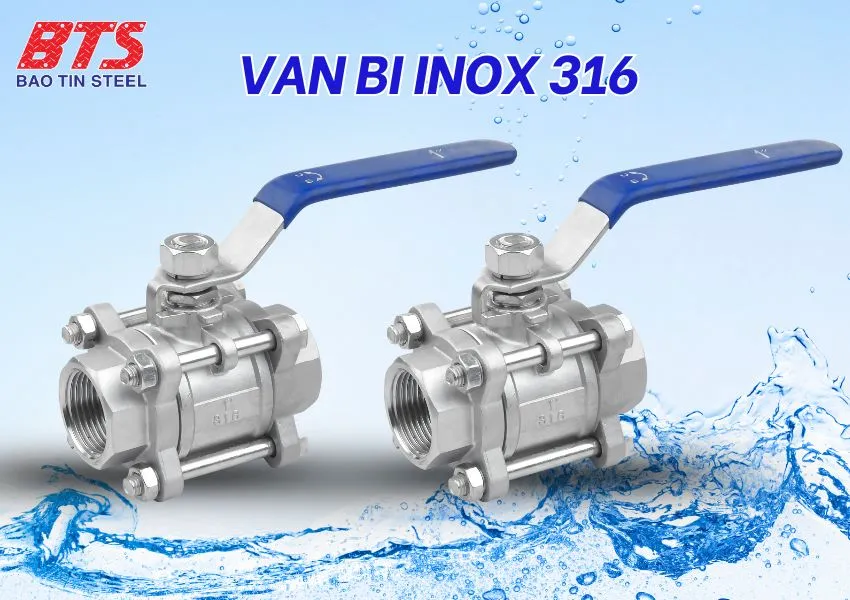

What is a 316 Stainless Steel Ball Valve? What Are Its Characteristics?

A 316 Stainless Steel Ball Valve is an industrial valve used to control the flow of liquids or gases by using a ball inside the valve body. The ball has a central hole, and when rotated 90 degrees, it allows the fluid to flow through or completely blocks it.

In terms of construction, the valve typically consists of key components such as the valve body, the ball, the handle or actuator, sealing gaskets, and connection parts (threads, flanges, etc.). The special feature of this valve is that both the body and the ball are made from 316 stainless steel. This is a high-grade stainless steel that enhances durability and corrosion resistance.

In industrial piping systems, 316 stainless steel ball valves are often installed at the flow regulation points, upstream, in the middle of the line, or at branching points. Thanks to their quick opening and closing capabilities, high sealing performance, and long lifespan, these valves help the system operate efficiently and reduce maintenance costs.

316 stainless steel is a high-quality, corrosion-resistant material that stands out for its excellent corrosion resistance. This is due to the addition of Molybdenum (Mo), alongside Chromium (Cr) and Nickel (Ni). Compared to 304 stainless steel, 316 stainless steel provides better rust resistance, especially in environments with seawater, chemicals, or salt.

Are 316 Stainless Steel Ball Valves Good? Reasons to Choose Them

Superior Corrosion Resistance

One of the strongest advantages of 316 stainless steel ball valves is their exceptional corrosion resistance. Even when operating in environments with seawater, chemicals, or mild acids, these valves remain highly durable. Thanks to the presence of Molybdenum (Mo), the valve can function reliably in conditions where many other materials would quickly degrade. This is the reason why these valves are commonly used in the food, pharmaceutical, and seawater treatment industries.

High mechanical durability, long-term stable operation.

In addition to its corrosion resistance, the 316 stainless steel ball valve also offers high mechanical strength. The valve can withstand high pressure and temperatures, and it is less prone to deformation over time. This ensures stable system operation, reduces leakage, and lowers maintenance and repair costs. If you’re looking for a valve that can be “purchased once and used for many years,” this is a very reasonable choice.

A wide range of connection types and sizes.

The 316 stainless steel ball valve is designed with various flexible connection types such as threaded, flanged, clamp, and more. It also comes in a wide range of sizes, from small (DN15) to large (DN200 and beyond). This makes it easy for you to select the right ball valve model for different piping systems, from residential to large-scale industrial applications.

Widely used in various industrial sectors.

The 316 stainless steel ball valve is widely used across various industries:

• Food & Beverage Industry: Ensures hygiene and safety for production systems.

• Chemical Industry: Offers excellent resistance to solvents and corrosive substances.

• Wastewater & Seawater Treatment: Performs reliably in environments with high salinity and pH levels.

• Oil & Gas & Energy: Withstands high pressure and temperature in transmission systems.

Compare a 316 stainless steel ball valve with other types of valves

When choosing a valve for a piping system, many people are often confused between materials such as 304 stainless steel, cast iron, or brass. So, what makes the 316 stainless steel ball valve stand out? Below are a few practical comparisons to help you make a more informed decision before choosing:

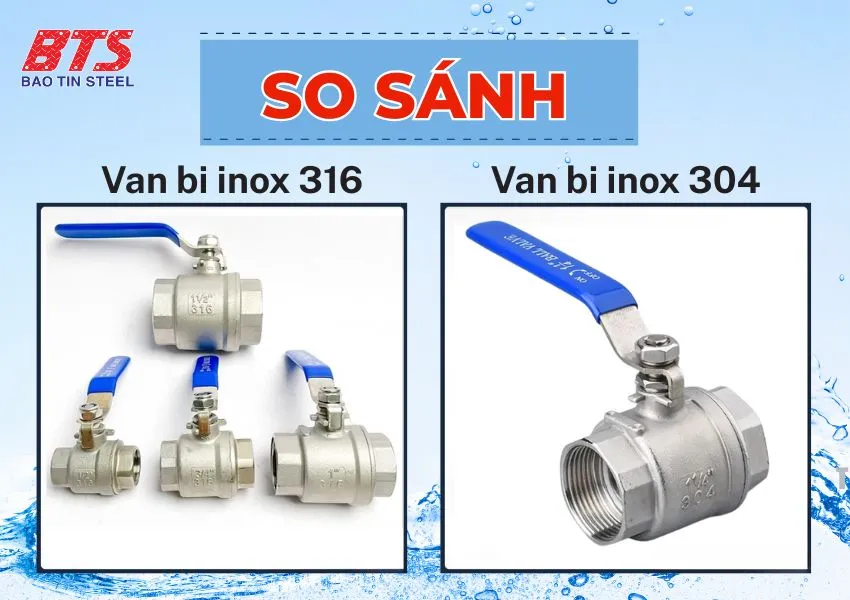

Compared to 304 Stainless Steel Ball Valve

Corrosion Resistance:

Both 304 and 316 stainless steel are corrosion-resistant, but 316 has the edge due to the addition of molybdenum (Mo). This component significantly enhances its resistance to corrosion in chemical environments, seawater, and salt solutions. Therefore, if your system operates in harsh environments, the 316 stainless steel ball valve will be more durable and safer than the 304.

Price:

Due to the use of higher-quality materials, the price of a 316 stainless steel ball valve is typically 10–30% higher than that of a 304 stainless steel valve, depending on the size and brand. However, this initial investment is well worth it if you want your system to operate stably in the long run and minimise maintenance costs in the future.

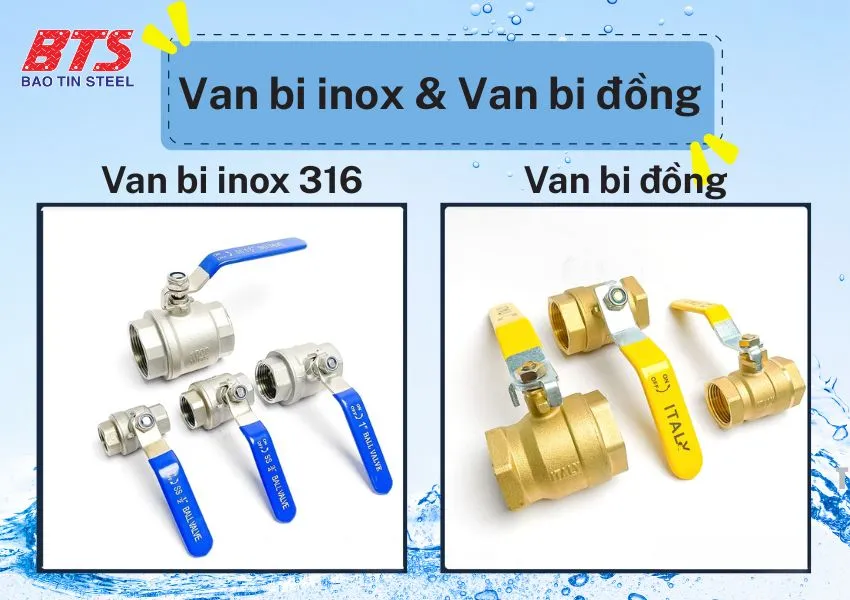

Compared to Cast Iron and Brass Ball Valves:

Lifespan and Durability:

Cast iron and brass valves are generally cheaper, but they are more prone to corrosion and oxidation, especially when used outdoors or in environments with chemicals. In contrast, the 316 stainless steel ball valve is almost completely resistant to rust, offering a much longer lifespan, particularly in high-demand and continuous operation environments.

Safety and Hygiene:

In industries like food, pharmaceuticals, or clean water, hygiene is always a top priority. 316 stainless steel valves are not only clean but also free from heavy metal contamination, which is something cast iron or brass valves struggle to ensure. As a result, 316 stainless steel is often the preferred choice in systems that require high standards of safety and hygiene.

👉👉 Explore a wider selection of bronze and cast iron ball valves at Bao Tin Steel.

Where can I buy high-quality, reasonably priced 316 stainless steel ball valves?

If you are looking for a place to buy genuine, high-quality 316 stainless steel ball valves, Bao Tin Steel is a trusted choice for you. With many years of experience in supplying industrial materials and piping equipment, Bao Tin Steel is committed to providing products that meet the right standards – the right quality, the right price, and tailored to your needs.

With over 13 years of experience in the field of distributing steel pipes, pipe fittings, valves and fire protection materials, Bao Tin Steel has gained a certain position. We commit to:

• Genuine, high-quality valves with complete certification and inspection documents.

• A wide variety of products with different specifications, suitable for various applications and environments.

• Attractive and transparent pricing policies with discounts available.

• Stock availability, with customers welcome to visit directly to inspect the products.

• Dedicated support and consultation, available 24/7.

• Fast and reliable delivery service, with direct shipping to customers’ locations.

Why wait? Contact Bao Tin steel now to get helpful information about 316 stainless steel ball valves. We are here and ready to assist you – Hotline: 0932 059 176!
