Flange valves or flange valves are extremely popular valves today. They are diverse in types and specifications. So what is a flange valve? What is the price list of flange valves of all kinds? Come to Bao Tin Steel to find the answer right away!
What is a flange valve?
Flange valve is the general name for industrial valves that use flanges to connect to the piping system through bolted connections.
Flanged valves are manufactured according to DIN, BS, JIS, and ANSI standards. Each of these standards will specify the valve’s properties and characteristics (diameter, thickness, bolt-hole spacing, etc.).
Regarding connection standards, flanged valves often meet JIS 10K, BS PN16, BS PN10, ANSI class 300, DIN PN16, etc. These are considered common standards in Vietnam and around the world.
Flanged valves in general and flanged connections in particular help control fluid flow through the pipe. It creates a complete system, making the pipe sturdy and leak-free.
Structure of flange valve
Flange valves consist of many parts. Specifically:
- Valve body: Helps protect the internal parts of the valve.
- Valve cap: helps the valve seal tightly and protects the internal parts of the valve from external impacts.
- Valve shaft: Connects to the valve handle or controller to open/close the valve.
- Valve disc: Closes/opens the valve; prevents/allows fluid flow through.
- Sealing gasket: Prevents leakage when fluid passes through the valve.
- Control part: Helps the user control the valve more easily.
- Flange: Helps connect the valve to the pipeline.
Common types of flange valves
The only difference is that flanged valves have a flange structure to connect to the pipe. Therefore, flanged ball valves, flanged butterfly valves, flanged check valves, etc. are also understood as flanged valves. Each of these types will have its own characteristics and technical specifications. Specifically:
Flanged Ball Valve
Flanged ball valves can operate in both directions. They have the same parts as regular ball valves. The only difference is that there is a flange on the body to connect to the pipe. Therefore, this is also one of the types of flanged 2-way valves.
The highlight is that the valve has a valve disc in the shape of a round ball with a hole punched through the center, connecting from one end to the other end of the ball. That hole is also the valve door. The valve door will be responsible for opening and closing the valve, allowing the fluid to pass through or blocking the flow of fluid.
Specifications of flanged ball valve
- Size: 2″ – 12″ (50 – DN300)
- Material: SUS304, SUS316, cast iron, steel, PVC, UPVC….
- Connection type: flange
- Flange standard: JIS, BS, DIN, ANSI
- Working pressure: 10kg/cm2 – 16kg/cm2
- Working temperature: 0 – 180℃
- Control type: Lever, handwheel, electric control, pneumatic control.
- Origin: Taiwan, China, Japan, Korea,…
Flanged Gate Valve
Flange gate valve or flange gate valve, flange gate valve, and 2-flange stop valve are common names of this valve line. The flange gate valve opens and closes through the handwheel (steering wheel). The valve body is cast with 2 flanges on both sides. This flange is also used to connect the gate valve to the pipeline. This gate valve can operate in both directions, so it is also listed as a 2-way flange valve.
Flange Gate Valve Specifications
- Size: DN50 – DN1500
- Material: Cast iron, steel, stainless steel
- Connection type: flange
- Flange standard: JIS 10K, BS PN16, ANSI class150, DIN PN 16
- Working pressure: PN10 – PN25
- Working temperature: 0 – 180℃
- Control type: Handwheel, electric control, pneumatic control
- Origin: Taiwan, China, Japan, Korea,…
Flanged Butterfly Valves
This is a valve with a special design consisting of 2 flanges attached to the valve body. The flange comes with a gasket layer to help connect to the pipe more quickly. Flange butterfly valves help regulate the flow in the system as desired.
Technical specifications of the flanged butterfly valve
-
Size: DN40 – DN1000
-
Material: Cast iron, steel, stainless steel
-
Connection type: 2 flanges
-
Flange standards: JIS, DIN, BS
-
Working pressure: PN10, PN16, PN25
-
Working temperature: 0 – 200℃
-
Control type: Handwheel, lever, electric control, pneumatic control
-
Origin: Taiwan, China, Japan, Korea,…

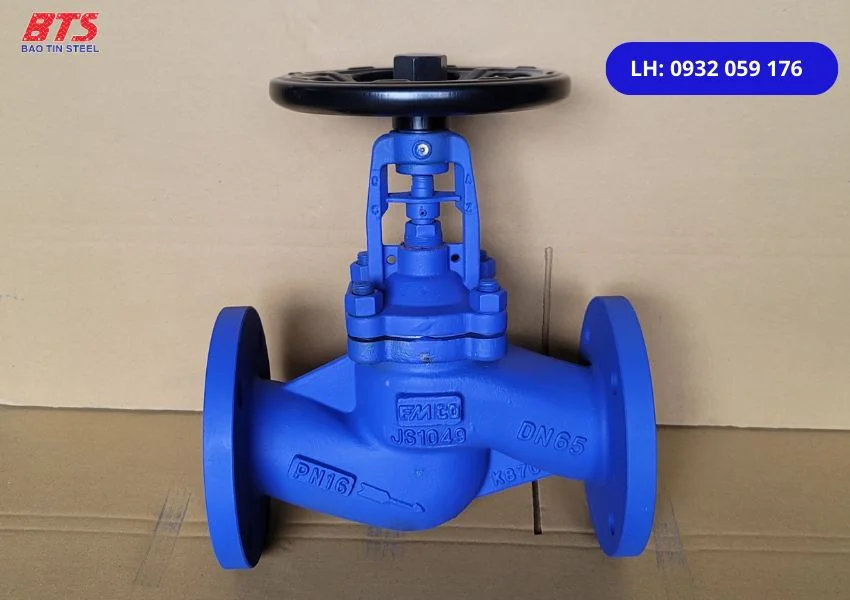

Flanged Globe Valve
Flanged globe valves come in many shapes, such as bulbous, tilt-type, Y-type, and angle. The structure of the flanged globe valve has a baffle, dividing the inside of the valve body into 2 compartments. On the baffle, there is a hole called the valve seat. This valve seat has the role of opening/closing to control the flow of fluid.t.
Specifications of flanged globe valve
- Size: DN15 – DN1000
- Material: Copper, cast iron, steel, stainless steel
- Connection type: flange
- Flange standard: BS, DIN, JIS, ANSI
- Pressure: PN10, PN16, PN25
- Working temperature: -5 – 400℃
- Control type: handwheel, electric, pneumatic
- Origin: Taiwan, China, Japan, Korea,….
Flange Safety Valve
During operation, this valve is always in the closed state. It only plays its role when the system pressure exceeds the specified level. The valve body is cast with 2 flanges, allowing the fluid to pass directly through.
Technical specifications of flanged safety valve
- Size: 2″ – 12″ (DN50 – DN300)
- Material: Stainless steel, copper, cast iron, steel,…
- Connection type: Flange
- Flange standard: JIS, BS, ANSI
- Working pressure: PN16, PN25
- Working temperature: -10 ~ 250ºC
- Origin: Taiwan, China, Japan, Korea,….
Flanged Air Valve
A flange-mounted air release valve helps to remove accumulated air in the system and regulate the air at the appropriate level. The connecting part of the valve body is cast in the form of a flange. It makes connection and installation easier.
Technical specifications of flanged air release valve
- Size: DN50 – DN300
- Material: Copper, cast iron, stainless steel, steel,.
- Connection type: Flange
- Flange standard: BS, DIN, JIS10K, ANSI
- Working pressure: PN10, PN16
- Working temperature: 0 ~ 80 degrees C
- Origin: Taiwan, China, Japan, Korea,…
Price list of flange valves of all kinds
Knowing the popular flanged valve lines, their prices are of great concern. Many factors affect their prices, such as brand, size, manufacturing standards, etc. Therefore, when comparing these types of flanged valves, you may see some differences. Below, Bao Tin Steel would like to provide you with a flanged valve price list for your reference.
* Note: The flange valve price list below is just a REFERENCE PRICE LIST. Prices may change depending on the time. Therefore, to get the latest and most accurate price list, you can contact us – 9832 059 176.
Price list of 304 stainless steel ball valves with flange connection
| No. | Size (DN) | Reference price (VND) |
| 1 | DN15 | 885.435 |
| 2 | DN20 | 905.365 |
| 3 | DN25 | 1.235.624 |
| 4 | DN32 | 1.534.565 |
| 5 | DN40 | 2.367.329 |
| 6 | DN50 | 3.224.294 |
| 7 | DN65 | 4.570.953 |
| 8 | DN80 | 6.405.882 |
| 9 | DN100 | 9.725.553 |
| 10 | DN125 | 17.962.094 |
| 11 | DN150 | 25.936.706 |
Flange stop valve price list
| No. | Size (DN) | Reference price (VND) |
| 1 | 50 | 1.731.000 |
| 2 | 65 | 1.949.000 |
| 3 | 80 | 2.571.000 |
| 4 | 100 | 2.935.000 |
| 5 | 125 | 4.232.000 |
| 6 | 150 | 5.080.000 |
| 7 | 200 | 7.974.000 |
| 8 | 250 | 10.855.000 |
| 9 | 300 | 15.477.000 |
| 10 | 350 | 19.286.000 |
| 11 | 400 | 36.808.000 |
Price list of cast iron butterfly valve with 2 flanges
| No. | Size (DN) | Reference price (VND) |
| 1 | DN80 | 2.380.000 |
| 2 | DN100 | 2.567.000 |
| 3 | DN125 | 3.373.000 |
| 4 | DN150 | 3.935.000 |
| 5 | DN200 | 7.021.000 |
| 6 | DN250 | 7.871.000 |
| 7 | DN300 | 12.155.000 |
| 8 | DN350 | 15.274.000 |
| 9 | DN400 | 29.750.000 |
| 10 | DN450 | 43.061.000 |
| 11 | DN500 | 43.554.000 |
Flanged globe valve price quote
| No. | Size (DN) | Reference price (VND) |
| 1 | DN15 (1/2″) | 2.692.423 |
| 2 | DN20 (3/4″) | 2.913.559 |
| 3 | DN25 (1″) | 3.430.557 |
| 4 | DN32 (1.1/4″) | 4.020.000 |
| 5 | DN40 (1.1/2″) | 4.573.886 |
| 6 | DN50 (2″) | 5.605.982 |
| 7 | DN65 (2.1/2″) | 7.745.469 |
| 8 | DN80 (3″) | 9.811.752 |
| 9 | DN100 (4″) | 12.799.086 |
| 10 | DN125 (5″) | 20.470.780 |
| 11 | DN150 (6″) | 25.892.704 |
| 12 | DN200 (8″) | 59.678.237 |
| 13 | DN250 (10″) | 92.283.934 |
| 14 | DN300 (12″) | 133.741.732 |
Flanged safety valve quotation
| No. | Size (DN) | Reference price (VND) |
| 1 | DN40 | 2.630.000 |
| 2 | DN50 | 3.340.000 |
| 3 | DN65 | 4.610.000 |
| 4 | DN80 | 5.300.000 |
| 5 | DN100 | 7.500.000 |
Flange air release valve price list
| No. | Size (DN) | Reference price (VND) |
| 1 | DN50 | 880.000 |
| 2 | DN65 | 1,000,000 |
| 3 | DN80 | 1,120,000 |
| 4 | DN100 | 1,550,000 |
| 5 | DN150 | 2,550,000 |
Advantages of flange valves
It is not by chance that this valve line is trusted in many projects as it is today. Here are the reasons:
- Flange valves are connected to the pipeline through bolts and nuts. This makes them easy to install and disassemble. Especially when repairing and maintaining, it helps save time and costs.
- Flange valves can withstand high pressure and temperature. Therefore, they are used in chemical, oil and gas, mineral pipeline systems, etc.
- This valve also has a rubber gasket to seal, preventing leakage and affecting the life of the system.
- The valve has a variety of types and sizes, suitable for many pipeline systems.
Applications of flange valves
Flange valves play an important role in pipeline systems, especially in places with high pressure and flow. Thanks to their sturdy structure, good pressure resistance, and high tightness, flange valves are widely used in the following fields:
– Water supply and drainage system: Controls the flow of water in domestic water supply systems, irrigation water, wastewater, etc.
– Oil and gas systems: Used in oil and gas exploitation, transportation, processing, and distribution systems.
– Chemical systems: Transport and handling of liquid, gaseous, and solvent chemicals.
– Energy systems: Used in power plants, steam piping systems, HVAC systems
– Construction industry: Used in water supply and drainage systems, fire protection systems, ventilation systems in high-rise buildings, industrial parks, and traffic works.
Above is information about flange valves and their prices. Hopefully, the information provided by Bao Tin Steel will be useful to everyone. Contact us via Hotline: 0932 059 176 if you need support!
