Learn About Kitz Ball Valve: Structure, Principle, Applications

Are you looking into Kitz Ball Valves and wondering what makes this valve special?
This is a high-quality ball valve from Japan, known for its durability, quick opening and closing capabilities, and stable operation in a variety of environments.

In this article, we will explore everything from its structure and working principle to its practical applications in water, gas, steam, and chemical systems. If you’re uncertain whether this valve is right for your needs, keep reading! This article will provide you with clear and easy-to-understand answers.

What is a Kitz Ball Valve?

Kitz Ball Valve is an industrial valve product manufactured by KITZ Corporation, one of the leading valve manufacturers in the world from Japan. Kitz valves in general, and Kitz ball valves in particular, are renowned for their high quality, durability, and reliability. They are widely used in various industries across the globe.

Kitz Ball Valve is one of the main industrial valves produced by KITZ Corporation. It functions to regulate the flow rate of liquids or fully open/close the flow of fluids within pipeline systems.

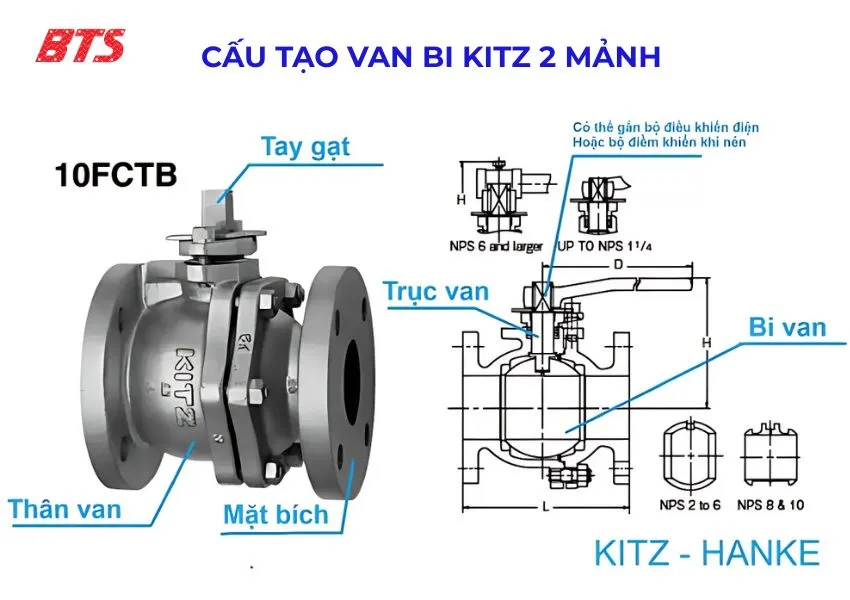

Structure of Kitz Ball Valve

Main Components of Kitz Ball Valve

Kitz Ball Valve has the basic structure of a ball valve, including:

• Valve Body:
  It can be constructed from two parts (two-piece) or three parts (three-piece), depending on the design, and is made from materials such as brass, stainless steel (SUS304, SUS316), cast iron, or steel.

• Ball (Valve Disc):
  The ball is a hollow sphere with a hole drilled through it. When the hole is aligned parallel to the pipeline, the valve is open; when the hole is perpendicular, the valve is closed. The ball is typically made from materials similar to the valve body.

• Stem:
  The stem connects the ball to the external control mechanism.

• Sealing Gasket (O-Ring):
  Typically made from PTFE (Teflon) or EPDM. It ensures tight sealing and prevents leakage.

• Control Mechanism:
  This could be a manual lever or an actuator that is either pneumatic or electric.

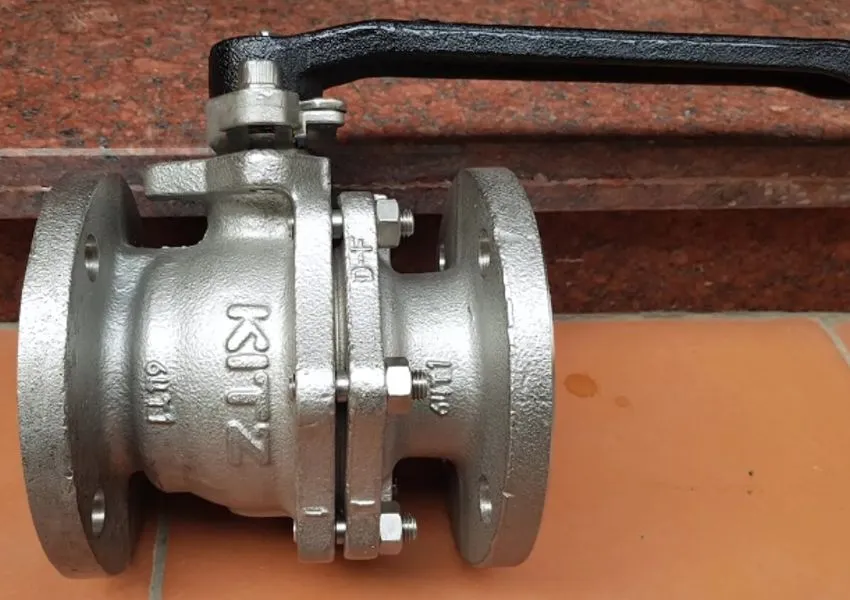

Materials of Construction for Kitz Ball Valve

Depending on the application and working environment, Kitz ball valves are made from various materials:

Valve Body and Ball:

• Stainless Steel 304, 316: Offers excellent corrosion resistance, suitable for water, chemicals, and food applications.

• Brass: Suitable for clean water and domestic systems.

• Cast Iron: Used in large-scale industrial systems.

• Plastic (PVC, CPVC): Designed for environments with mild chemicals and low pressure.

Sealing Gasket:

• PTFE (Teflon): Corrosion-resistant, heat-resistant, and commonly used in most applications.

• RPTFE: More durable than PTFE, suitable for environments with higher pressure or temperature.

• Viton: Used in harsh chemical environments. It offers excellent heat and chemical resistance.

Operating Principle of Kitz Ball Valve

The core principle of the Kitz ball valve’s operation is the ball with a through-hole. When the handle or lever is rotated by 90 degrees, the ball also rotates. This controls the open or closed state of the flow:

• When the hole in the ball is parallel to the flow, the fluid passes through easily → the valve is in the open state.

• When the hole in the ball is perpendicular to the flow, the flow is completely blocked → the valve is closed.

This quarter-turn mechanism makes the opening and closing process extremely fast, simple, and easy to operate. This also brings many benefits. Specifically:

• Fast Opening and Closing:
  With just a 90-degree turn, the valve’s state can be changed. This saves time and makes the operation more convenient.

• High Sealing Performance:
  Thanks to high-quality seals and the tight-fitting mechanism between the ball and the seat, Kitz ball valves have excellent leakage resistance, even in high-pressure environments.

• Ease of Use and Durability:
  The simple design with fewer moving parts means the valve is less likely to fail, has a long service life, and is suitable for non-professional users.

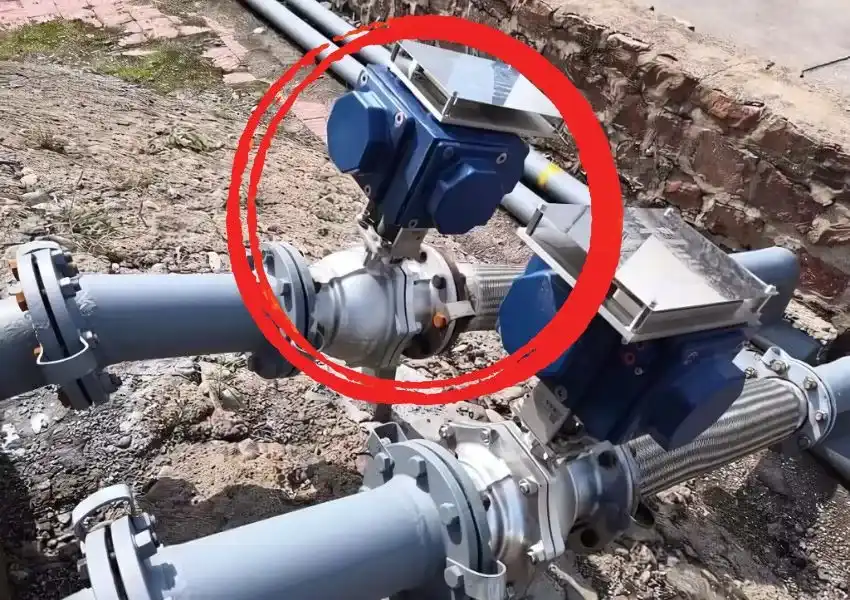

Practical Applications of Kitz Ball Valves in Reality

With high durability, flexible operation, and stable quality, this ball valve is widely used in various fields. From large-scale industrial systems to common civil engineering projects.

In Industry

Kitz ball valves are a reliable choice in environments that require high safety and sealing performance, such as:

• Chemical, Food, and Pharmaceutical Plants:
  Kitz stainless steel ball valves are popular for their corrosion resistance and ease of cleaning, ensuring safety for special fluids.

• Water, Compressed Air, Steam, Oil Systems:
  Thanks to their robust design, Kitz ball valves can withstand high pressures and temperatures. As a result, they are suitable for pipelines carrying liquids and gases in manufacturing plants, energy facilities, and boilers.

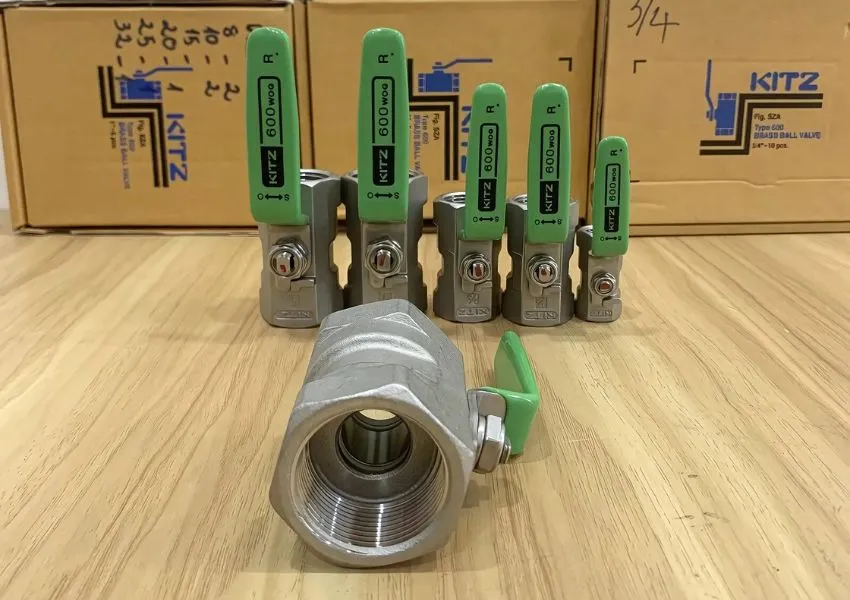

In Domestic Applications

Not only in industry, Kitz ball valves are also commonly found in domestic projects such as:

• Water Supply and Drainage Systems:
  Ensures smooth opening and closing, leak-proof performance, and long lifespan. It is ideal for domestic water systems and public infrastructure projects.

• Firefighting, Air Conditioning, Water Filtration Systems:
  The valve operates steadily and is suitable for installation in water supply stations, fire pump systems, central air conditioning systems, or both domestic and industrial water filtration systems.

Conclusion

Kitz valves are highly regarded for their robust design, excellent sealing capabilities, and a variety of materials suitable for many different working environments. Whether you’re constructing a water supply system, handling chemicals, or installing steam pipelines, choosing the right type of valve will help save on maintenance costs. It also enhances operational efficiency and ensures long-term safety. Based on the analysis above, Kitz ball valves are undoubtedly a reliable choice that you can confidently invest in.
