ភាសាខ្មែរWith many outstanding cost advantages and production technology, VinaOne angle bar steel products are manufactured by Vina One Steel Production Joint Stock Company. It is one of the types of steel that many users choose.
Advantages of angle bar VinaOne
-
- Vinaone angle bar is produced at Vina One steel factory with modern equipment and technology.
- Produced according to Japan’s JIS and TCVN
- Produced by a closed process from smelting, casting steel billets continuously rolling
- The product has high elasticity, and high strength, and is limited in deformation and deformation upon impact.
- The chemical composition is stable, helping to prevent the surface from pitting during the zinc dipping process.
- We are certified by Vietnam’s leading quality centers such as Quacert and Quatest.
- Products meet standards in width, thickness, length of belly, and wings.

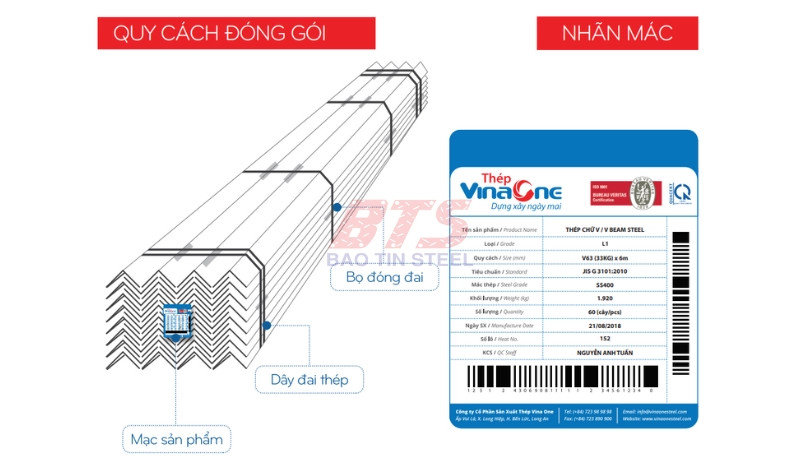

Angle bar Vina One steel packing specification
Technical parameters of angle bar Vinaone

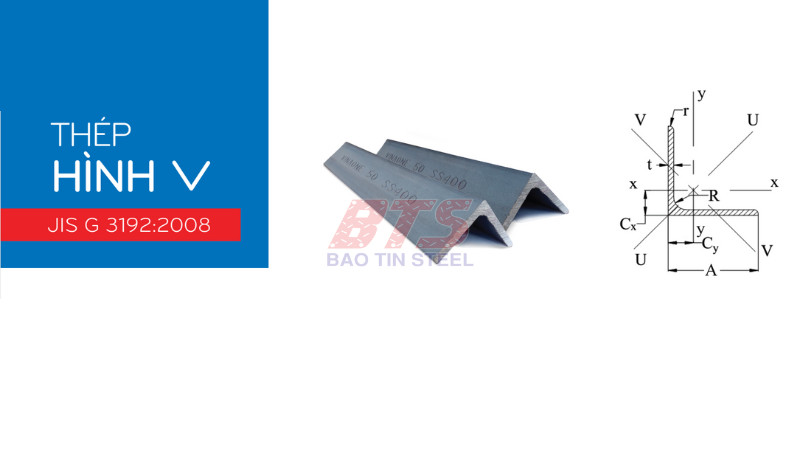

Vina One angle bar production specifications according to JIS G 3192:2008
| STEEL BRAND | CHEMICAL COMPOSITION (%) | MECHANICAL PROPERTIES | |||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Mn | Si | P | S | CEV | Flow limit Y.S (N/mm2) | Endurance limit T.S (N/mm2) | Elongation (%) | |
| SS400 | – | – | – | ≤ 0.05 | ≤ 0.05 | – | ≥ 245 | 400-510 | ≥ 21 |
| SS540 | ≤ 0.3 | ≤ 1.6 | – | ≤ 0.04 | ≤ 0.04 | – | ≥ 400 | ≥ 540 | ≥ 16 |

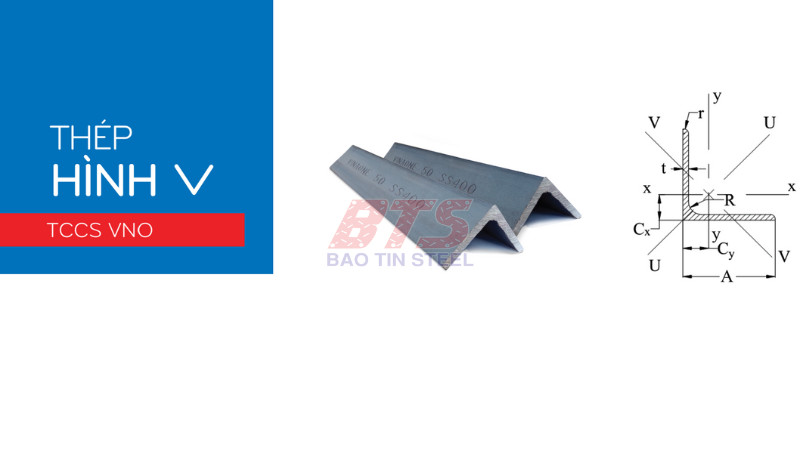

Production specifications of angle bar Vina One according to basic standards of VNO
| TYPE OF PRODUCTS | LENGTH FEATURE A (MM) |
Toleration LENGTH (MM) |
THICKNESS FEATURE T (MM) |
Toleration THICKNESS (MM) |
MASS PIECE (KG) |
DENSITY (KG/M) |
|---|---|---|---|---|---|---|
| 40 x 40 x 3 | 40 | ±1,0 | 3 | 0.2 – 0.3 | 11.0 | 1.84 |
| 40 x 40 x 4 | 40 | 4 | 14.5 | 2.42 | ||
| 40 x 4 0 x 5 | 40 | 5 | 17.8 | 2.97 | ||
| 50 x 50 x 4 | 50 | ±1,5 | 4 | 0.2 – 0.3 | 18.4 | 03.06 |
| 50 x 50 x 5 | 50 | 5 | 22.6 | 3.77 | ||
| 50 x 50 x 6 | 50 | 6 | 26.8 | 4.47 | ||
| 60 x 60 x 5 | 60 | ±2 | 5 | 0.2 -0.4 | 27.4 | 4.57 |
| 60 x 60 x 6 | 60 | 6 | 32.5 | 5.42 | ||
| 60 x 60 x 8 | 60 | 8 | 42.5 | 07.09 | ||
| 63 x 63 x 3 | 63 | ±1,5 | 3 | 0.2 -0.4 | 17.88 | 2.98 |
| 63 x 63 x 4 | 63 | 4 | 23.40 | 3.90 | ||
| 63 x 63 x 5 | 63 | 5 | 28.86 | 4.81 | ||
| 63 x 63 x 6 | 63 | 6 | 34.32 | 5.72 | ||
| 65 x 65 x 5 | 65 | 1.0 -2,0 | 5 | 0.2 -0.4 | 29.94 | 4.99 |
| 65 x 65 x 6 | 65 | 6 | 35.46 | 5.91 | ||
| 65 x 65 x 7 | 65 | 7 | 40.98 | 6.83 | ||
| 65 x 65 x 8 | 65 | 8 | 46.38 | 7.73 | ||
| 70 x 70 x 6 | 70 | 2.0 -1,0 | 6 | 0.2 -0.4 | 38.3 | 6.38 |
| 70 x 70 x 7 | 70 | 7 | 44.3 | 7.38 | ||
| 75 x 75 x 6 | 75 | -1 | 6 | 0.2 -0.4 | 41.1 | 6.85 |
| 75 x 75 x 8 | 75 | 8 | 53.9 | 8.99 | ||
| 90 x 90 x 7 | 90 | ±1,5 | 7 | 0.2 -0.4 | 57.7 | 9.61 |
| 90 x 90 x 8 | 90 | 8 | 65.4 | 10.9 | ||
| 90 x 90 x 9 | 90 | 9 | 73.2 | 12.2 | ||
| 90 x 90 x 10 | 90 | 10 | 90.0 | 15 | ||
| 100 x 100 x 8 | 100 | 1.0 -3.0 | 8 | 0.2 -0.4 | 73.2 | 12.2 |
| 100 x 100 x 10 | 100 | 10 | 90.0 | 15 | ||
| 100 x 100 x 12 | 100 | 12 | 106.8 | 17.8 | ||
| 120 x 120 x 8 | 120 | ±2,0 | 8 | ±1,0 | 88.2 | 14.7 |
| 120 x 120 x 10 | 120 | 10 | 109.2 | 18.2 | ||
| 120 x 120 x 12 | 120 | 12 | 129.6 | 21.6 | ||
| 125 x 125 x 8 | 125 | ±2,0 | 8 | ±1,0 | 91.8 | 15.3 |
| 125 x 125 x 10 | 125 | 10 | 114.0 | 19 | ||
| 125 x 125 x 12 | 125 | 12 | 135.6 | 22.6 | ||
| 150 x 150 x 10 | 150 | ±2,0 | 10 | ±1,0 | 138.0 | 23 |
| 150 x 150 x 12 | 150 | 10 | 163.8 | 27.3 | ||
| 150 x 150 x 15 | 150 | 15 | 202.8 | 33.8 |
| STEEL GRADE | CHEMICAL COMPOSITION (%) | MECHANICAL PROPERTIES | |||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Mn | Si | P | S | CEV | Flow limit Y.S (N/mm2) | Endurance limit T.S (N/mm2) | Elongation (%) | |
| SS400 | – | – | – | ≤ 0.05 | ≤ 0.05 | – | ≥ 245 | 400-510 | ≥ 21 |
| SS540 | ≤ 0.3 | ≤ 1.6 | – | ≤ 0.04 | ≤ 0.04 | – | ≥ 400 | ≥ 540 | ≥ 16 |

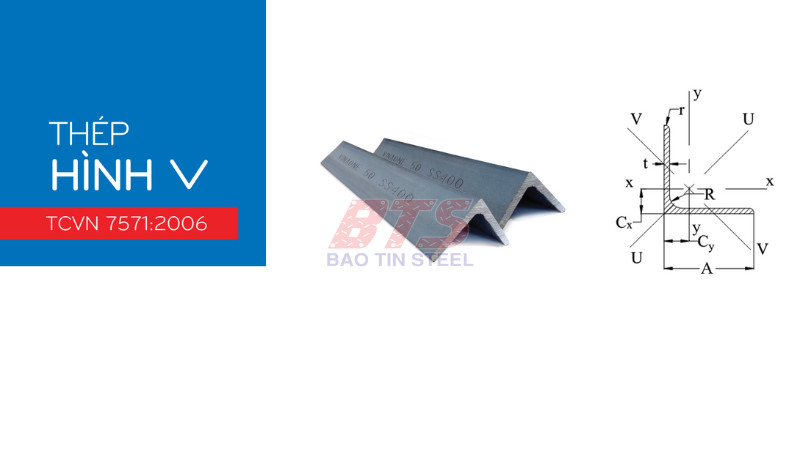

VinaOne angle bar steel production specifications according to TCVN 7571:2006 standard
| STEEL GRADE | CHEMICAL COMPOSITION (%) | MECHANICAL PROPERTIES | |||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Mn | Si | P | S | CEV | Flow limit Y.S (N/mm2) | Endurance limit T.S (N/mm2) | Elongation (%) | |
| CT38 | 0.14 – 0.22 |
0.4 – 0.65 |
0.12 – 0.3 |
≤ 0.05 | ≤ 0.05 | – | ≥ 250 | 380 – 500 | ≥ 26 |
| CT51 | 0.28 – 0.37 |
0.5 – 0.8 |
0.15 – 0.35 |
≤ 0.05 | ≤ 0.05 | – | ≥ 250 | 510 – 640 | ≥ 20 |

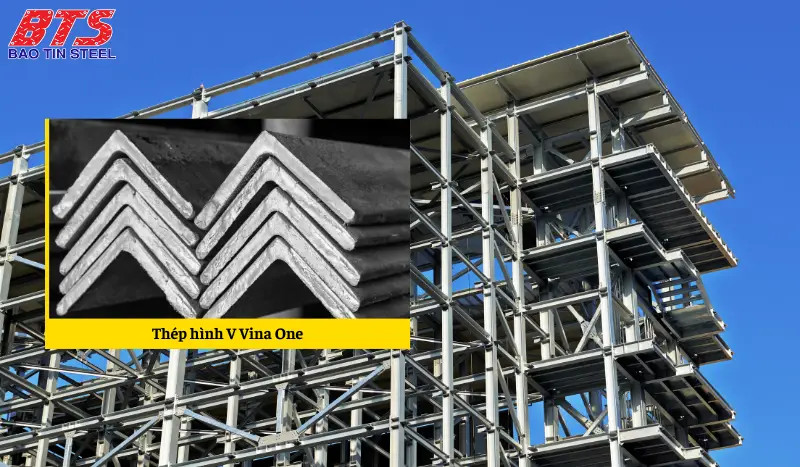

Application of angle bar Vina One
- Making high voltage transmission towers, antenna towers, …
- Making road and bridge structures, building factories, and pre-engineered steel buildings,
- Used in shipbuilding, fencing, interior manufacturing, roofing, mechanics, bodywork, chassis, etc.
In addition to VinaOne angle bar products, at Tiger Steel, we also provide many other products of Vina One Steel. These can be mentioned as Vina One black steel pipe, Vina One hot dipped galvanized steel pipe, Vina One square steel, and VinaOne rectangular steel.
