ភាសាខ្មែរV steel, also known as an angle bar, has the characteristic that its two sides are perpendicular to each other. angle bar (V steel ) is the most commonly used rolled steel in structural steel.
Types of Angle Bars

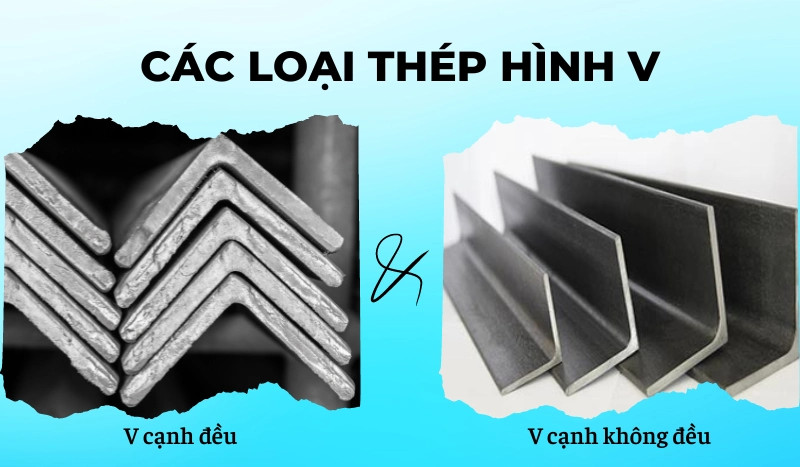

Do you know? There are two types of angle bars on the market.
Those are:
- Angle bars are manufactured according to TCVN 1656:1993 standards. There are symbols as follows: 40x40x4mm regular angled steel, accuracy grade B is recorded as L40x40x4B TCVN 1656:1993.
- An unequal angled bar is manufactured according to TCVN 1657:1993 standard. With a ratio of 2 sides falling about 1:1.5 or 1:2. There are symbols as follows: steel with unequal angles 63x40x4mm, accuracy grade B is recorded as L63x40x4B TCVN 1657:1993.
While angled bar steel has 50 cross-sections from L20x20x3 to L250x250x35. Then the unequal angled bar has up to 72 cross-sections from L30x20x3 to L200x150x25.
Specifications of angle bar
Please see the data in the table below for a better understanding

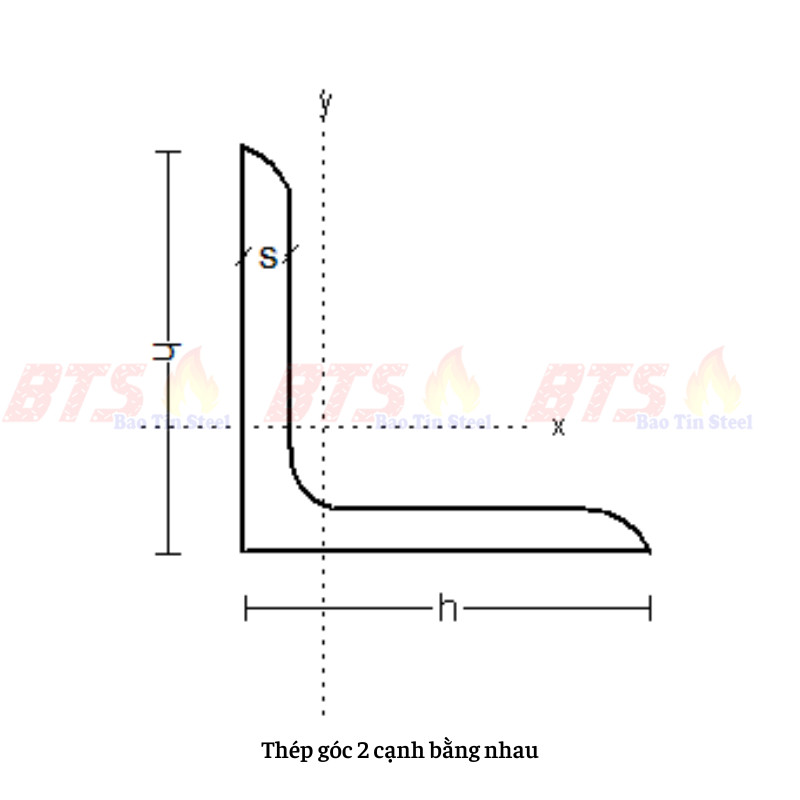

Angle bar with 2 equal sides
| SPECIFICATION TABLE OF EQUAL ANGLE BAR | ||||
|---|---|---|---|---|
| NAME | SPECIFICATIONS | LENGTH | KHỐI LƯỢNG | |
| KG/ MÉT | KG/ CÂY | |||
| Angle Bar V30 | V 30x30x2.5x6m | 6m | 6.00 | |
| V 30x30x2.5x6m | 6m | 5.50 | ||
| V 30x30x3x6m | 6m | 6.50 | ||
| V 30x30x3x6m | 6m | 7.50 | ||
| Angle Bar V40 | V 40x6m | 6m | 12.00 | |
| V 40x6m | 6m | 12.50 | ||
| V 40x40x3x6m | 6m | 1.67 | 10.00 | |
| V 40x40x4x6m | 6m | 2.42 | 14.52 | |
| Angle Bar V50 | V 50x50x3x6m | 6m | 14.00 | |
| V 50x50x4x6m | 6m | 17.00 | ||
| V 50x50x4x6m | 6m | 03.06 | 18.36 | |
| V 50x50x5x6m | 6m | 3.77 | 22.62 | |
| V 50x50x5x6m | 6m | 21.00 | ||
| V 50x50x6x6m | 6m | 4.43 | 26.58 | |
| V 50x50x6x6m | 6m | 28.00 | ||
| Angle Bar V63 | V 63x63x5x6m | 6m | 4.82 | 28.92 |
| V 63x63x5x6m | 6m | 26.00 | ||
| V 63x63x6x6m | 6m | 5.72 | 34.32 | |
| V 63x63x6x6m | 6m | 33.00 | ||
| V 63x63x4x6m | 6m | 23.00 | ||
| Angle Bar V65 | V 65x65x4x6m | 6m | 3.70 | 22.20 |
| V 65x65x5x6m | 6m | 4.55 | 27.30 | |
| V 65x65x5x6m | 6m | 29.50 | ||
| V 65x65x6x6m | 6m | 5.91 | 35.46 | |
| Angle Bar V70 | V 70x70x5x6m | 6m | 31.50 | |
| V 70x70x5x6m | 6m | 5.37 | 32.22 | |
| V 70x70x6x6m | 6m | 37.50 | ||
| V 70x70x6x6m | 6m | 6.38 | 38.28 | |
| V 70x70x7x6m | 6m | 43.50 | ||
| V 70x70x7x6m | 6m | 7.38 | 44.28 | |
| Angle Bar V75 | V 75x75x5x6m | 6m | 5.22 | 31.32 |
| V 75x75x5x6m | 6m | 33.50 | ||
| V 75x75x6x6m | 6m | 6.85 | 41.10 | |
| V 75x75x6x6m | 6m | 6.25 | 37.50 | |
| V 75x75x7x6m | 6m | 7.81 | 46.86 | |
| V 75x75x8x6m | 6m | 8.92 | 53.52 | |
| Angle Bar V80 | V 80x80x6x6m | 6m | 7.32 | 43.92 |
| V 80x80x7x6m | 6m | 8.49 | 50.94 | |
| V 80x80x8x6m | 6m | 9.66 | 57.96 | |
| Angle Bar V90 | V 90x90x6x12m | 6-12m | 8.25 | 99.00 |
| V 90x90x7x12m | 6-12m | 9.59 | 115.08 | |
| V 90x90x8x12m | 6-12m | 10.94 | 131.28 | |
| V 90x90x9x12m | 6-12m | 12.24 | 146.88 | |
| V 90x90x10x12m | 6-12m | 13.52 | 162.24 | |
| Angle Bar V100 | V100x75x10x12m | 6-12m | 13.00 | 156.00 |
| V100x100x7x6m | 6-12m | 63.50 | ||
| V100x100x8x6m | 6m | 72.00 | ||
| V100x100x8x12m | 6 -12m | 11.49 | 137.88 | |
| V100x100x9x6m | 6m | |||
| V100x100x10x6m | 6m | 15.20 | 91.20 | |
| Angle Bar V120 | V 120x120x8x12m | 6-12m | 14.70 | 176.40 |
| V 120x120x10x12m | 6-12m | 18.20 | 218.40 | |
| V 120x120x12x12m | 6-12m | 21.66 | 259.92 | |
| Angle Bar V125 | V 125x125x10x12m | 6-12m | 19.13 | 229.56 |
| V 125x125x12x12m | 6-12m | 22.70 | 272.40 | |
| Angle Bar V130 | V 130x130x10x12m | 6-12m | 19.75 | 237.00 |
| V 130x130x12x12m | 6-12m | 23.40 | 280.80 | |
| V 130x130x15x12m | 6-12m | 28.80 | 345.60 | |
| Angle Bar V150 | V 150x150x10x12m | 6-12m | 22.90 | 274.80 |
| V 150x150x12x12m | 6-12m | 27.30 | 327.60 | |
| V 150x150x15x12m | 6-12m | 33.60 | 403.20 | |
| Angle Bar V175 | V 175x175x12x12m | 6-12m | 31.80 | 381.60 |
| V 175x175x15x12m | 6-12m | 39.40 | 472.80 | |
| Angle Bar V200 | V 200x200x15x12m | 6-12m | 45.60 | 547.20 |
| V 200x200x20x12m | 6-12m | 60.06 | 720.72 | |
| Angle Bar V250 | V 250x250x25x12m | 6-12m | 94.00 | 1,128.00 |

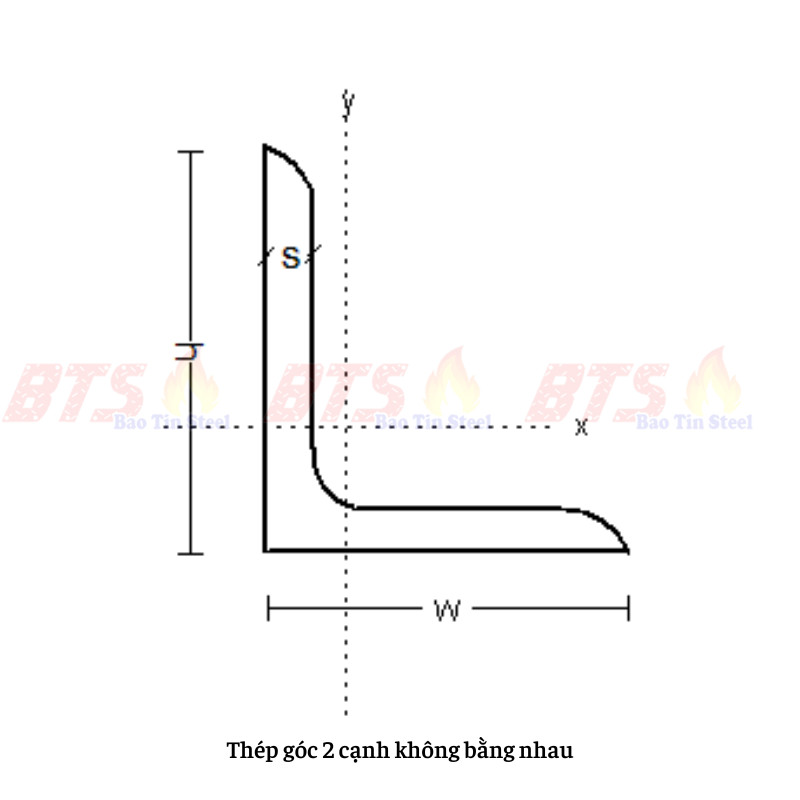

Angle bar with 2 unequal sides
| SPECIFICATION TABLE OF UNEQUAL ANGLES BAR | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size (mm x mm) |
Size | Static parameter | |||||||
| Moment of inertia | Modular part | ||||||||
| Depth – H – (mm) |
With – w – (mm) |
Thickness – s – (mm) |
Cross-sectional area (cm 2 ) |
Weight (kg/m) |
– I x – (cm 4 ) | – I y – (cm 4 ) | – S x – (cm 3 ) | – S y – (cm 3 ) | |
| 50 x 40 | 50 | 40 | 6 | 5.1 | 3.9 | 12.1 | 6.5 | 3.54 | 2.35 |
| 50 | 40 | 5 | 4.3 | 3.3 | 10.3 | 5.6 | 3.00 | 1.99 | |
| 60 x 30 | 60 | 30 | 6 | 5.1 | 4.0 | 18.2 | 3.0 | 4.78 | 1.32 |
| 60 | 30 | 5 | 4.3 | 3.3 | 15.6 | 2.6 | 04.04 | 1.12 | |
| 65 x 50 | 65 | 50 | 8 | 8.6 | 8.6 | 34.8 | 17.7 | 7.93 | 4.9 |
| 65 | 50 | 6 | 6.6 | 6.6 | 27.2 | 14.0 | 6.10 | 3.8 | |
| 65 | 50 | 5 | 5.5 | 5.5 | 23.2 | 11.9 | 5.14 | 3.2 | |
| 75 x 50 | 75 | 50 | 10 | 11.6 | 11.6 | 64 | 22.2 | 12.8 | 6.1 |
| 75 | 50 | 8 | 9.4 | 9.4 | 52 | 18.4 | 10.4 | 4.9 | |
| 75 | 50 | 6 | 7.2 | 7.2 | 41 | 14.4 | 8.0 | 3.8 | |
| 80 x 60 | 80 | 60 | 8 | 10.6 | 10.6 | 66 | 31.8 | 12.2 | 7.2 |
| 80 | 60 | 7 | 9.4 | 9.4 | 59 | 28.4 | 10.7 | 6.3 | |
| 80 | 60 | 6 | 8.1 | 8.1 | 51 | 24.8 | 9.3 | 5.5 | |
| 100 x 65 | 100 | 65 | 10 | 15.6 | 15.6 | 154 | 51 | 23.2 | 10.5 |
| 100 | 65 | 8 | 12.7 | 12.7 | 127 | 42 | 18.9 | 8.5 | |
| 100 | 65 | 7 | 11.2 | 11.2 | 113 | 38 | 16.6 | 7.5 | |
| 100 x 75 | 100 | 75 | 12 | 19.7 | 19.7 | 189 | 90 | 28.0 | 16.5 |
| 100 | 75 | 10 | 16.6 | 16.6 | 162 | 78 | 23.8 | 14.0 | |
| 100 | 75 | 8 | 13.5 | 13.5 | 133 | 64 | 19.3 | 11.4 | |
| 125 x 75 | 125 | 75 | 12 | 22.7 | 22.7 | 354 | 96 | 43.2 | 16.9 |
| 125 | 75 | 10 | 19.1 | 19.1 | 302 | 82 | 36.5 | 14.3 | |
| 125 | 75 | 8 | 15.5 | 15.5 | 247 | 68 | 29.6 | 11.6 | |
| 150 x 75 | 150 | 75 | 15 | 31.6 | 31.6 | 713 | 120 | 75 | 21.0 |
| 150 | 75 | 12 | 25.7 | 25.7 | 589 | 100 | 61 | 17.2 | |
| 150 | 75 | 10 | 21.6 | 21.6 | 501 | 86 | 52 | 14.6 | |
| 150 x 90 | 150 | 90 | 15 | 33.9 | 33.9 | 761 | 205 | 78 | 30.4 |
| 150 | 90 | 12 | 27.5 | 27.5 | 927 | 171 | 63 | 24.8 | |
| 150 | 90 | 10 | 23.2 | 23.2 | 533 | 146 | 53 | 21.0 | |
| 200 x 100 | 200 | 100 | 15 | 43 | 43 | 1758 | 299 | 137 | 38.4 |
| 200 | 100 | 12 | 34.8 | 34.8 | 1440 | 247 | 111 | 31.3 | |
| 200 | 100 | 10 | 29.2 | 29.2 | 1220 | 210 | 93 | 26.3 | |
| 200 x 150 | 200 | 150 | 18 | 60.0 | 60 | 2376 | 1146 | 174 | 103 |
| 200 | 150 | 15 | 50.5 | 50.5 | 2022 | 976 | 147 | 87 | |
| 200 | 150 | 12 | 40.8 | 40.8 | 1652 | 803 | 119 | 71 | |
Features and applications of angle bar
The characteristic of the angle bar section is that the two sides are perpendicular to each other. Convenient for link building. The length of the angle bars is manufactured from 4 to 13 meters.
An angle bar is produced by rolling the steel plate to an angle of 90 degrees. You can also call it the stamping method.
Angle bar is used to:
- Used as bearing bars such as bars of the truss: by using 1 or 2-angle bars to form a T-section or a cross.
- Used to bond with other steels to create composite structures. Like joining with steel plates to form hollow column sections, and I-beam cross-sections, …
An angle bar is the most used rolled steel in steel structures.
Hopefully, the knowledge that Tiger Steel provided above will be useful to you. If you need to buy an angle bar, you can contact Tiger Steel.
